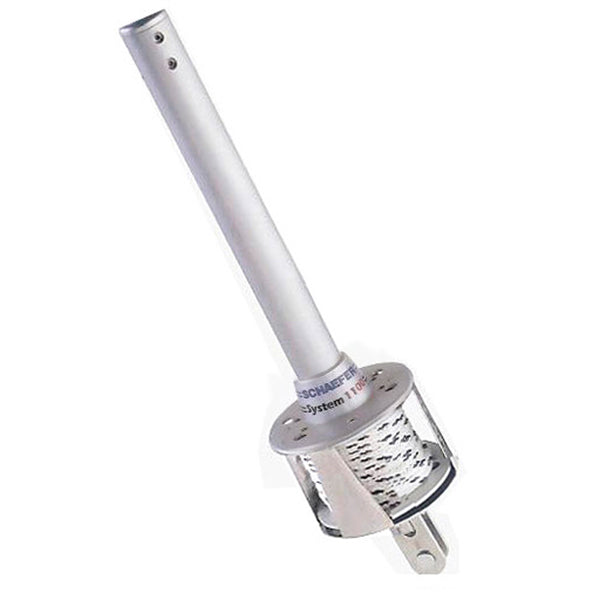

SCHAEFER 2100 Jib Furler System

Name: SCHAEFER 2100 Jib Furler System
Brand: RIGGINGONLY
SKU: SCHAEFER 2100-Extension Kit, 6'(2m), Joint, Rivets, Lin
Availability: InStock

£0.00

Tax included.

Schaefer 2100 Parts

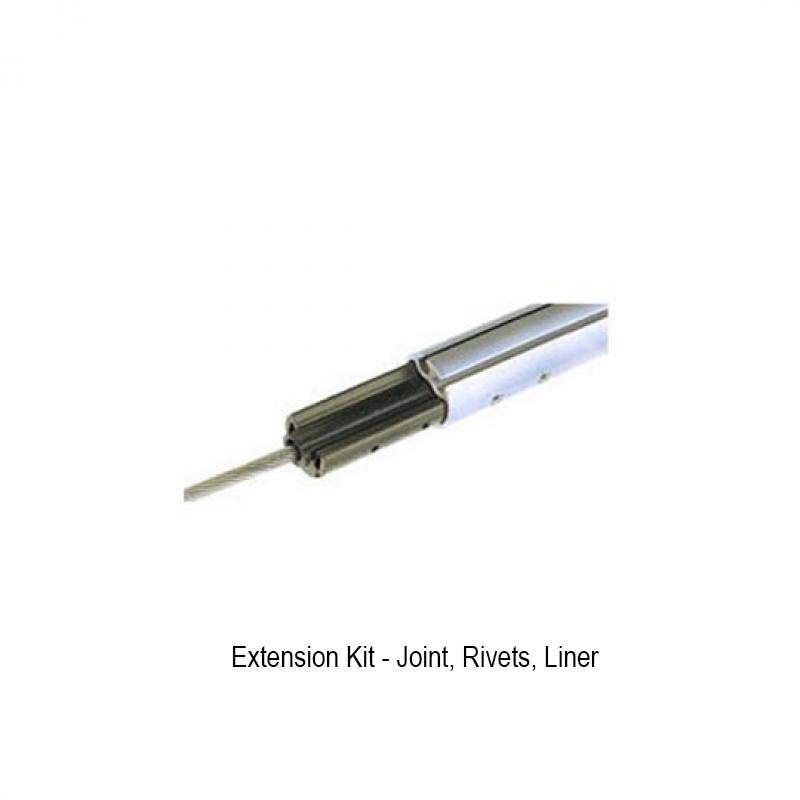

Extension Kit, 6'(2m), Joint, Rivets, Lin

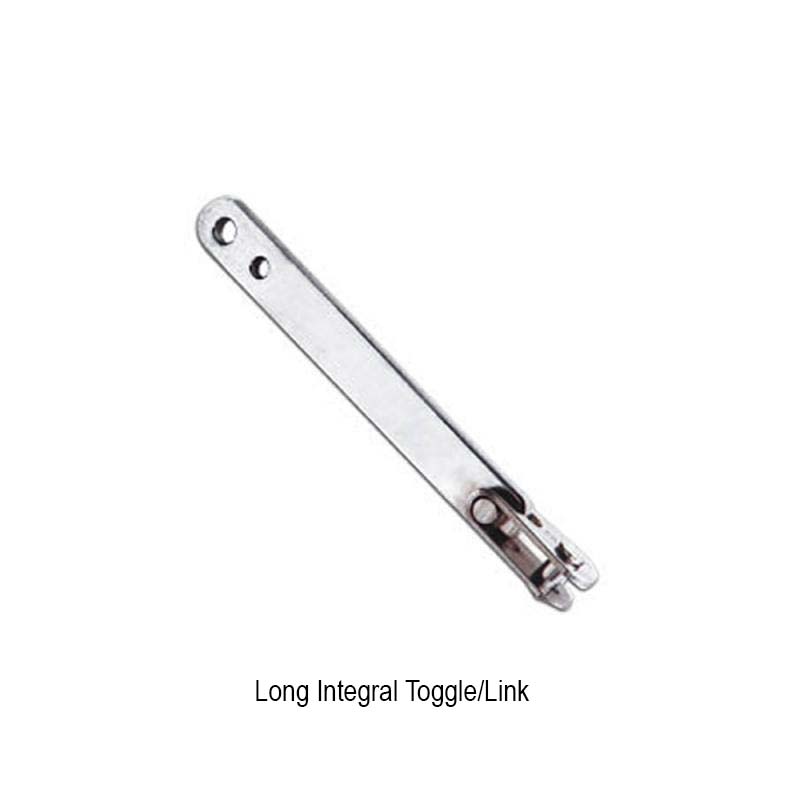

Long Integral Toggle/Link - 5/8" Pin

24 Long Integral Toggle/Link - 1/2" Pin

[{"id":40487287193791,"title":"Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin","option1":"Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin","option2":null,"option3":null,"sku":"SCHAEFER 2100-Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SCHAEFER 2100 Jib Furler System - Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin","public_title":"Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin","options":["Extension Kit, 6\u0026#39;(2m), Joint, Rivets, Lin"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40487287292095,"title":"Long Integral Toggle\/Link - 5\/8\u0026#34; Pin","option1":"Long Integral Toggle\/Link - 5\/8\u0026#34; Pin","option2":null,"option3":null,"sku":"SCHAEFER 2100-Long Integral Toggle\/Link - 5\/8\u0026#34; Pin","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SCHAEFER 2100 Jib Furler System - Long Integral Toggle\/Link - 5\/8\u0026#34; Pin","public_title":"Long Integral Toggle\/Link - 5\/8\u0026#34; Pin","options":["Long Integral Toggle\/Link - 5\/8\u0026#34; Pin"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40487287357631,"title":"24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin","option1":"24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin","option2":null,"option3":null,"sku":"SCHAEFER 2100-24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"SCHAEFER 2100 Jib Furler System - 24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin","public_title":"24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin","options":["24 Long Integral Toggle\/Link - 1\/2\u0026#34; Pin"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Boat Length	30 to 42 Feet
Drum Diameter	8 1/4 Inches
Features	Captive Fasteners Stainless Steel Feeder Riveted Assembly Overbuilt Heavy Duty Base Toggle Link
Grooves	Twin Aft Facing Sail Grooves for Racing Sail Changes
Headstay Diameter	3/8 Inch to 5/16 Inch
Headstay Length	49 Feet 3 Inches
Maximum Wire Size	3/8 Inch to 5/16 Inch

Product Overview

Using a combination of smooth-rolling Torlon® bearings and a round headstay extrusion centered on the headstay, Schaefer has reduced the effort necessary to roll up a genoa relative to competitive furlers. Features include:

Anodized aluminum and polished stainless steel provide strength, durability
Round Extrusions with dual sail grooves allow easy furling*
Large drum dia. increases mechanical advantage making furling easier
Open cage design for easy inspection and maintenance
Polyethylene bearing liners stop corrosion and promote smooth furling
Captive Fasteners ensure that no parts will be lost overboard

A complete system consists of a furler drum and tube package and a matching toggle and link, either standard or long (sold separately). Use Norseman or Sta-Lok fittings for easy installation over your existing standard wire headstay and turnbuckle. Systems without mechanical fittings are designed for rod or pre-swaged wire headstays; we recommend assembly by a professional rigger.

Ball Bearings: 3/8" Torlon® ball bearings in multiple open races. No lubrication needed
Drum Material: Anodized aluminum with stainless drum cage. Split drum easily removable for "race mode"
Features: Captive fasteners. Stainless feeder. Riveted assembly. Overbuilt heavy-duty base toggle link
Headstay/Pin Size: Wire size/pin diameter are critical ordering dimensions. Select Sta-Lok® or Norseman® terminal and Standard or Long toggle link.
Headstay Extrusion: Round anodized aluminum centered on headstay
For boats 30' to 42'
Headstay length: 49' 4"
Wire diameter: 3/8" to 6/16"
