Spinlock PXR Cam Cleat

• Fast precise control for hand tensioned lines
• Roller action ensures easy release under high load
• Hard anodised alloy cam and base
• Ideal for high performance lines
• Micro size for small diameters
• Three stage release control switch
• Ideal for single line spinnaker hoist systems
• Resists accidental re-cleating

Specification:

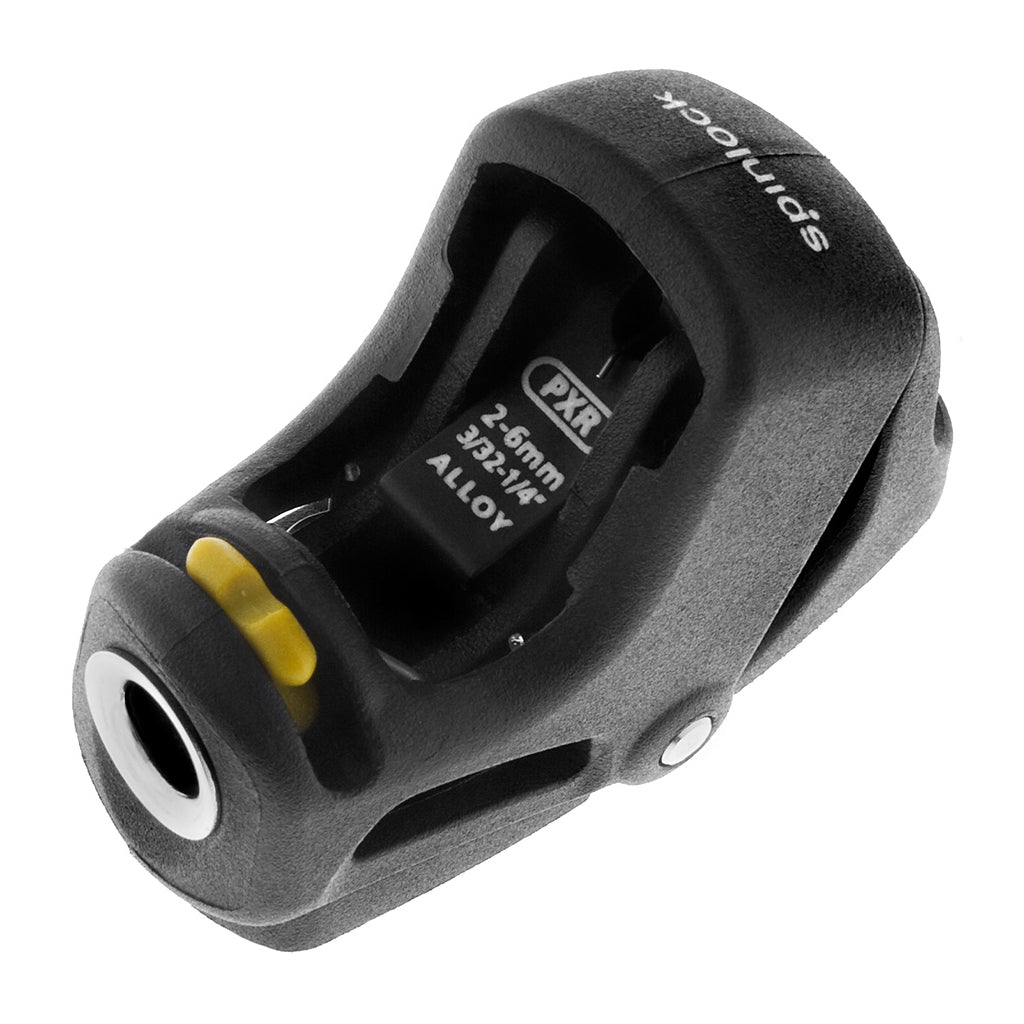

PXR0206

Lines: 2mm - 6mm (3/32" - 1/4")
Loads up to 140kg (308lbs)

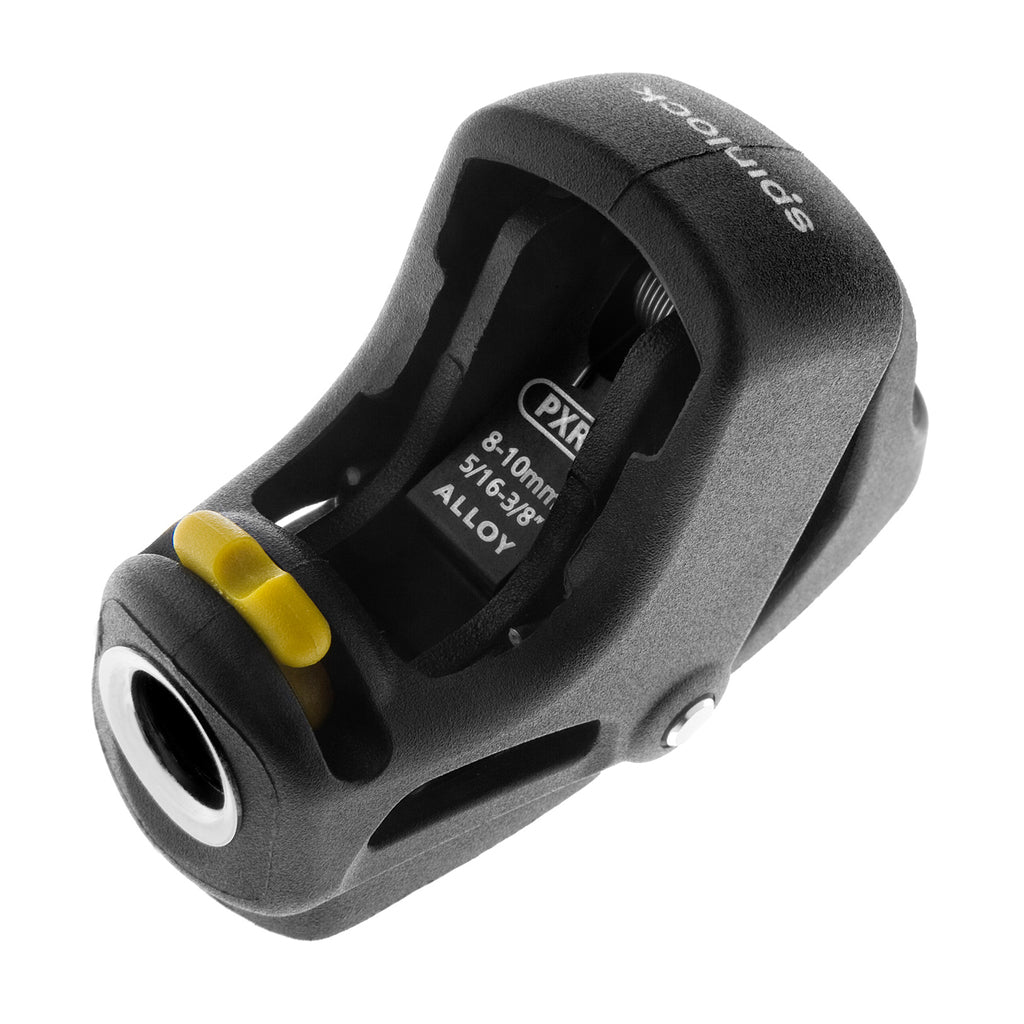

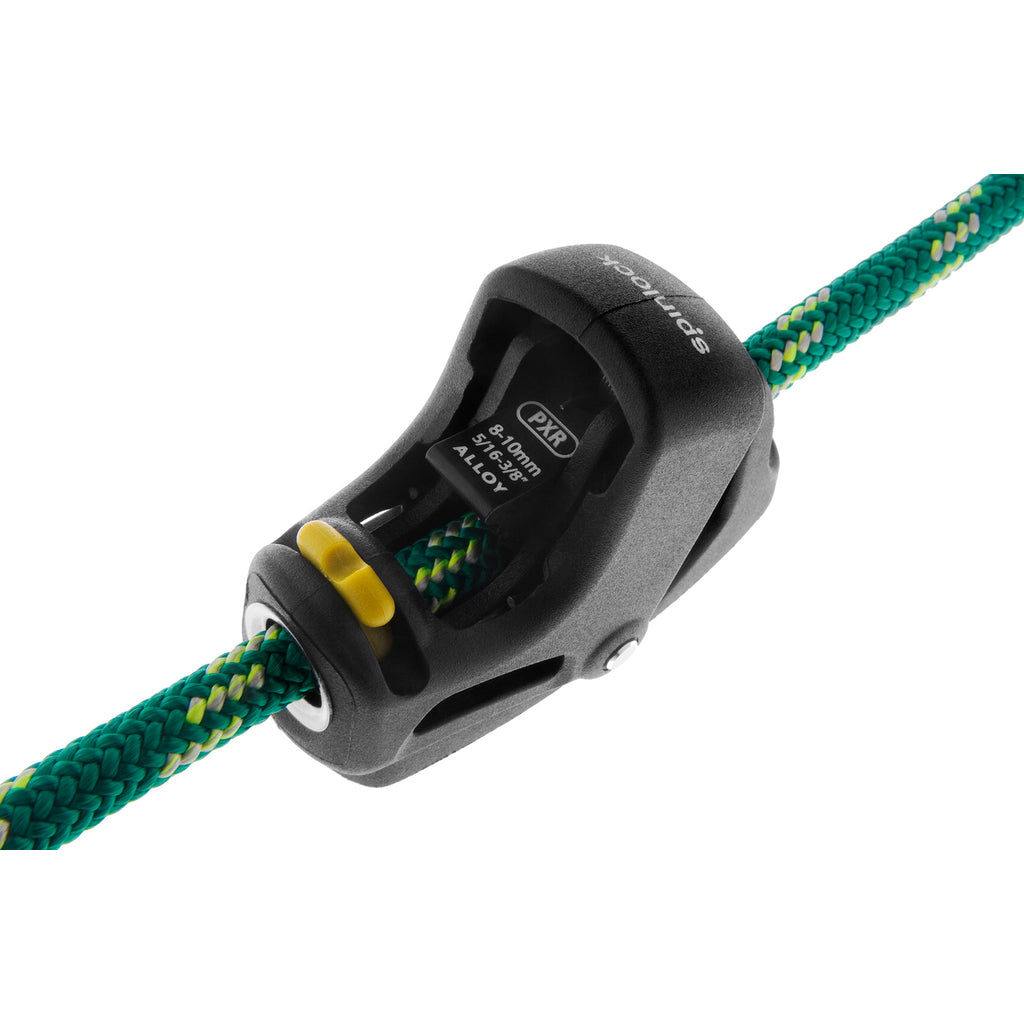

PXR0810

Lines: 8mm - 10mm (5/16" - 3/8")
Loads up to 200kg (440lbs)

Retro Fit 'T' - Matched hole centres allow direct replacement of traditional cam cleats with PXR

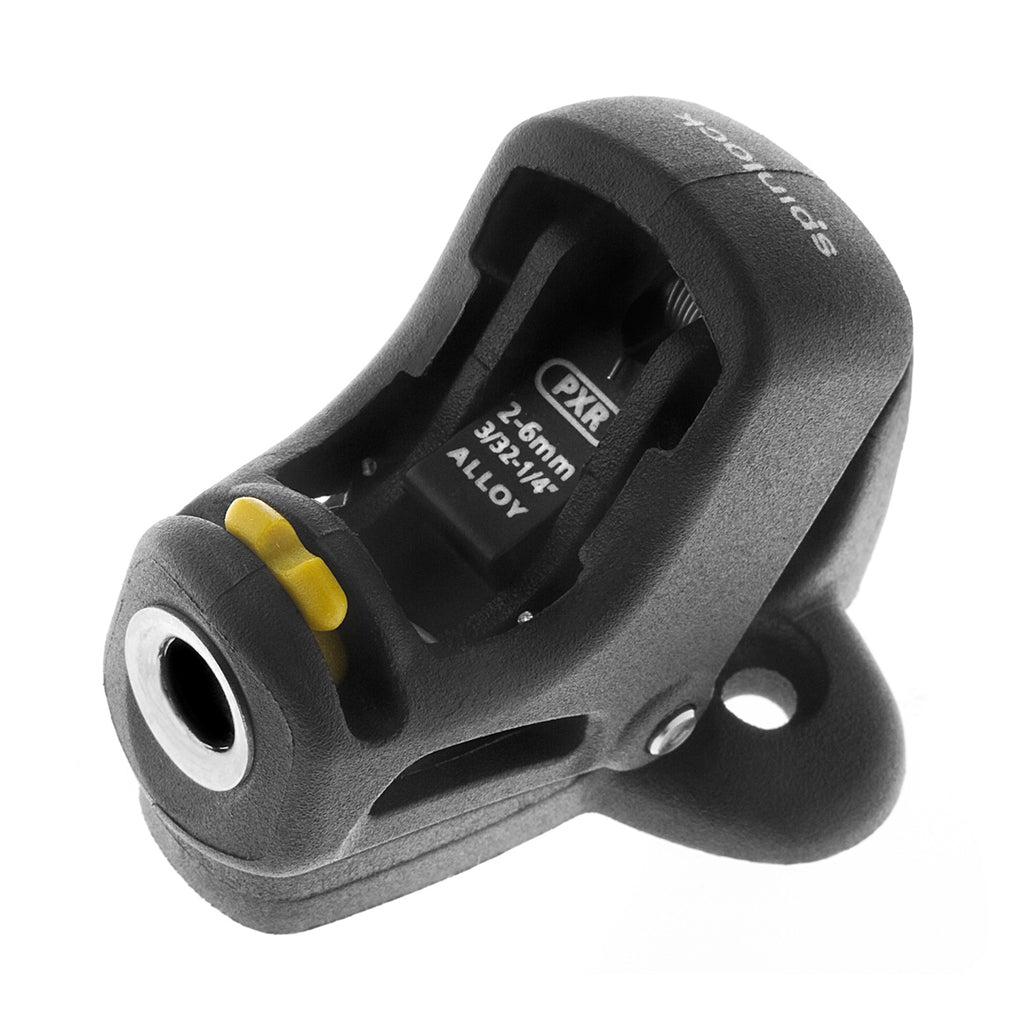

PXR0206/T - 27mm (1 1/16”) hole centres - for upgrading dinghy control line cam cleats

PXR0810/T - 38mm (1 1/2”) hole centres - for upgrading main sheet swivel cleats and traveller systems on dinghies, keelboats and yachts, and upgrading cam cleats on downhauls, vang and backstay controls

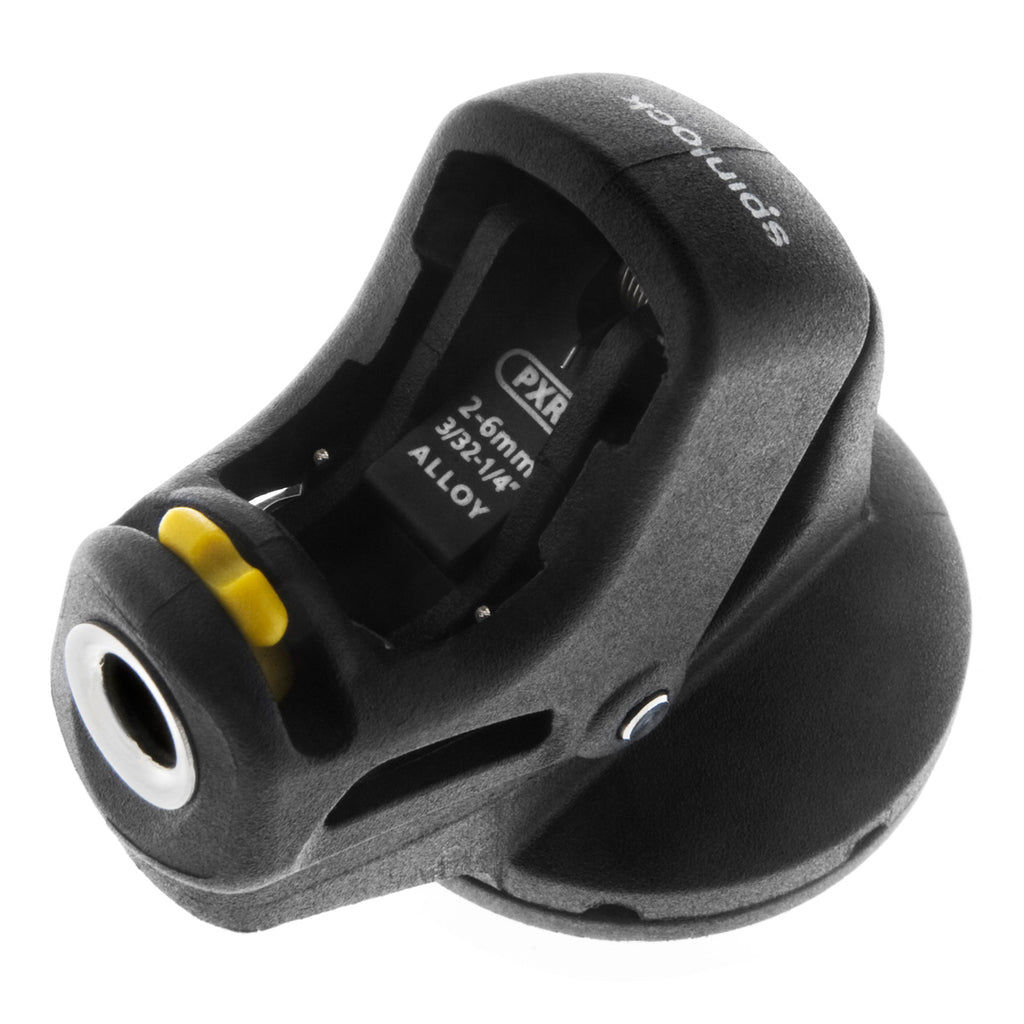

Deck Swivel ‘SW’

PXR0206/SW for single cleat control of jib sheets and dinghy vangs. Preferred by dinghy builders for single line spinnaker hoist systems

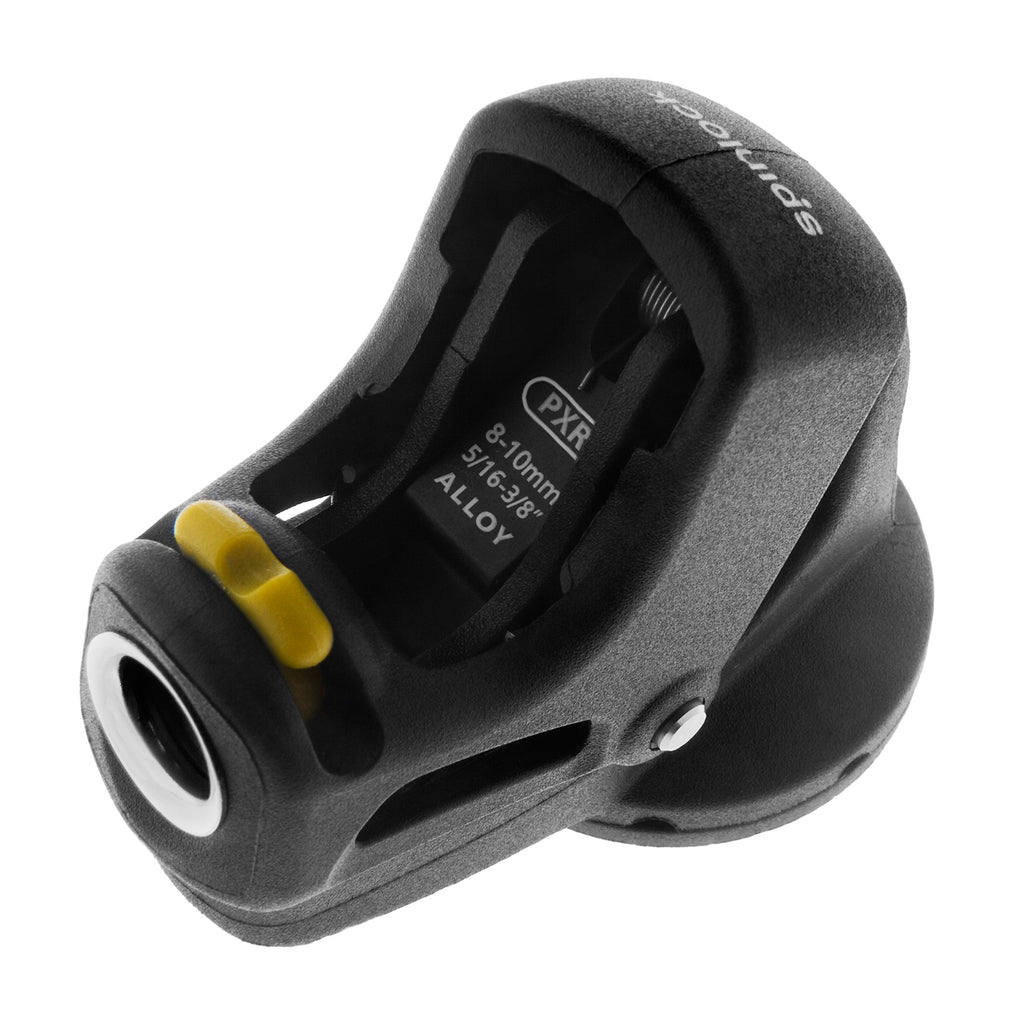

PXR0810/SW for bigger boat swivel cam cleat control applications

Same footprint as traditional swivel cam cleats

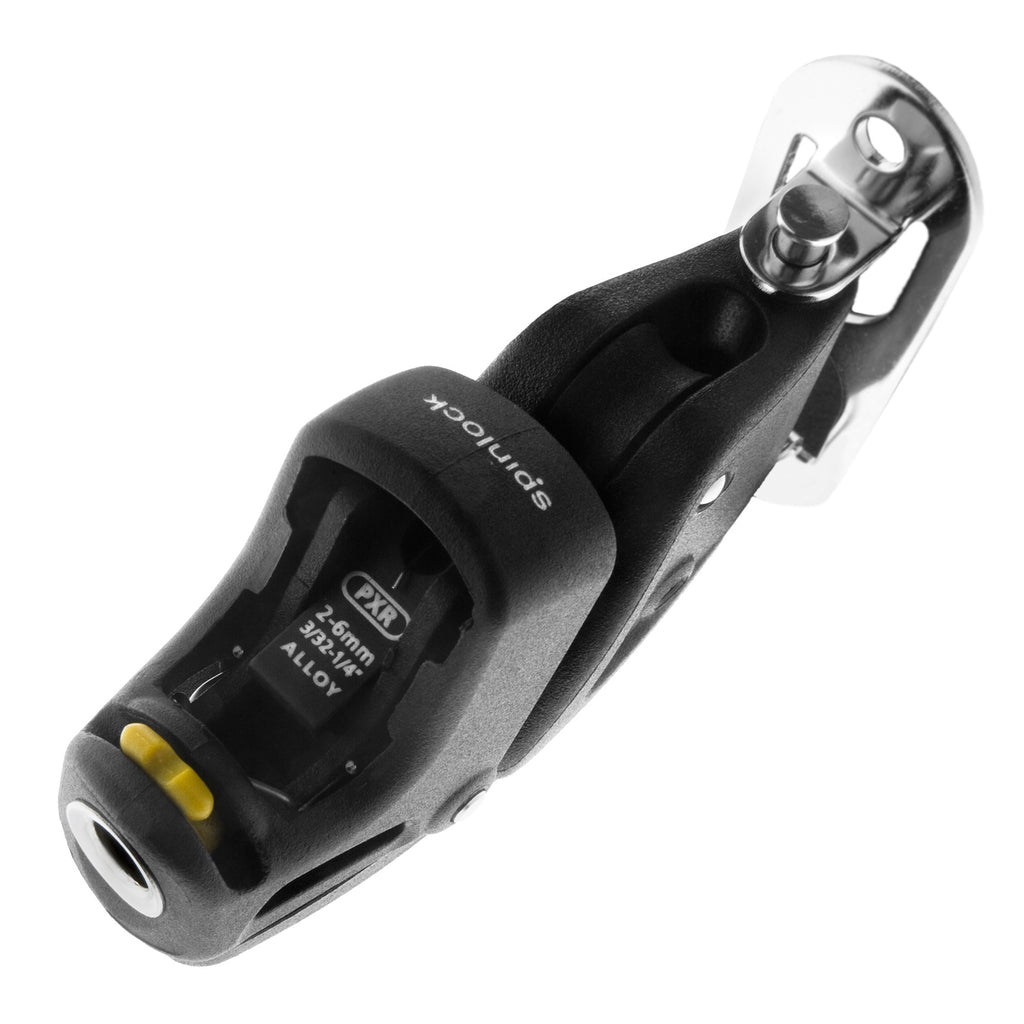

Vertical Pivot 'VP' (2-6mm version only)

Pivoting sheave and cleat with ultra compact design

Mount centrally for feeding control lines out to the sides

Mount under boom for outhaul and gnav controls

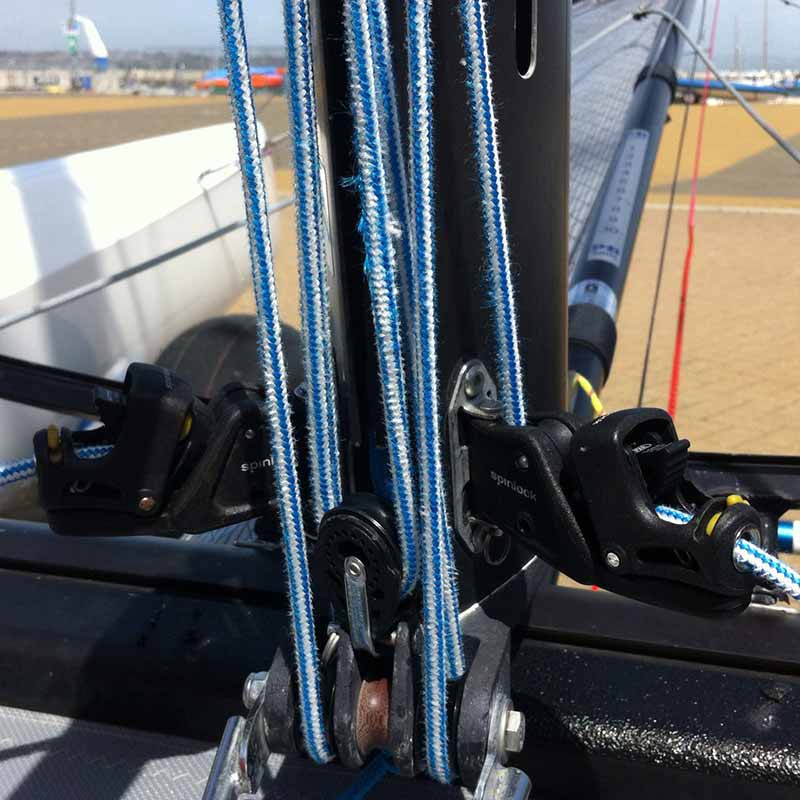

Mount at mast base for catamaran downhauls and vangs

Easily detached

Accepts Harken sheave ref: H415

Weights and Fasteners:

Weights

PXR0206 - 43g (1.5oz)

PXR0206/SW - 77g (2.7oz)

PXR0206/T - 53g (1.9oz)

PXR0206/VP - 97g (3.4oz)

PXR0810 - 84g (2.9oz)

PXR0810/SW - 124g (4.3oz)

PXR0810/T - 101g (3.5oz)

Fasteners

PXR0206 - 2 x M4 (5/32") CSK Head (not supplied)

PXR0206/SW - 3 x M5 (3/16") CSK Head (not supplied)

PXR0206/T - 2 x M4 (5/32") CSK Head (not supplied)

PXR0206/VP - Bracket mount

PXR0810 - 2 x M5 (3/16") CSK Head (not supplied)

PXR0810/SW - 3 x M5 (3/16") CSK Head (not supplied)

PXR0810/T - 2 x M5 (3/16") CSK Head (not supplied)

Load Graph:
