Wichard Forged Titanium Bow Shackles
Regular price £0.00Tax included.

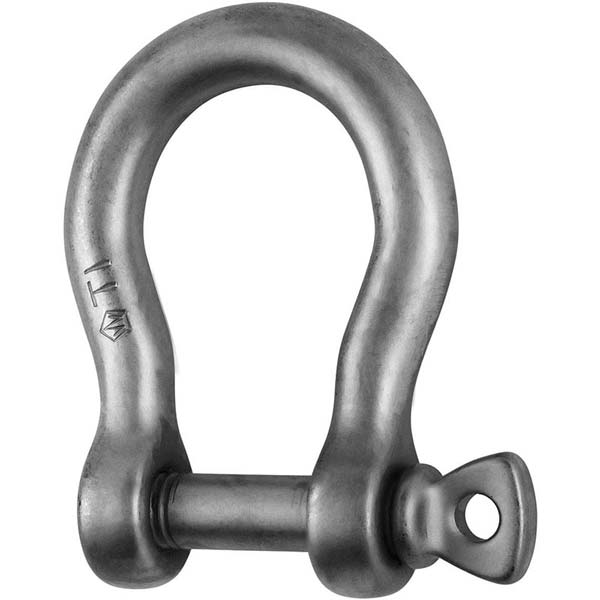

Forged titanium bow shackles
- These shackles, which are forged from TA6V titanium alloy, and are designed for high-level racing.
- Compared to equivalent High Resistance models, they offer a weight saving of approximately 40%.
- Titanium Shackles are up to 45% lighter than a standard 316L Stainless Steel Shackle

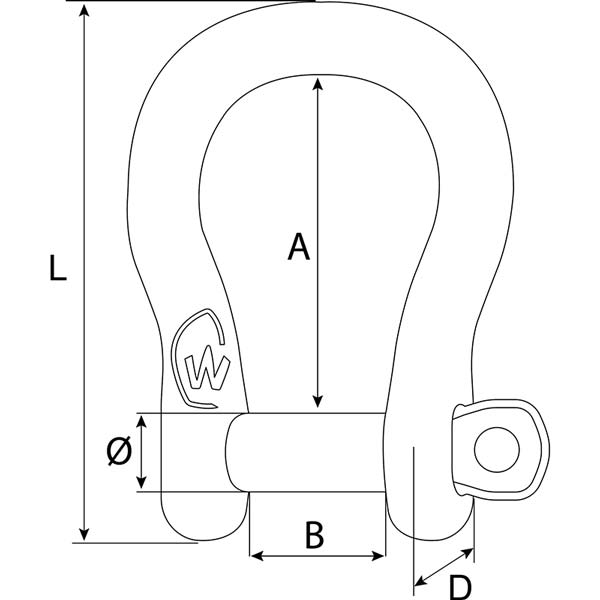

| Part | Pin Ø mm |
L mm |
A mm |
B mm |
D mm |
WL Kg |
BL Load Kg |
Weight Kg |
|---|---|---|---|---|---|---|---|---|
| WD-51245 | 10 | 72 | 47 | 20 | 20 | 2160 | 6000 | 0.082 |
| WD-51246 | 12 | 87 | 55 | 24 | 24 | 2800 | 8000 | 0.136 |
The Forging Process
Wichard forges its parts by drop forging, using a forge hammer: an operation which involves forming a heated slug under pressure between two dies.
This technique makes the structure of the metal homogeneous and gives the part strength and elasticity.
The parts are then finished and tested prior to being sold.
Forging guarantees the elasticity of the product, its resistance to corrosion and strength, while optimising the size of the parts.
