Wichard MXEvo Captive Pin
Regular price £0.00Tax included.
MXEvo block with a captive pin.
MXEvo block is the new generation of one-piece blocks developed by Wichard.
Features:
- Dedicated to heavy load applications,
- Impressive working and breaking load limits,
- Captive pin,
- Becket function to make tackles,
- Rope kept on track thanks to the fins,
- Optimized weight and dimensions,
- Easy opening - Easy rope installation,

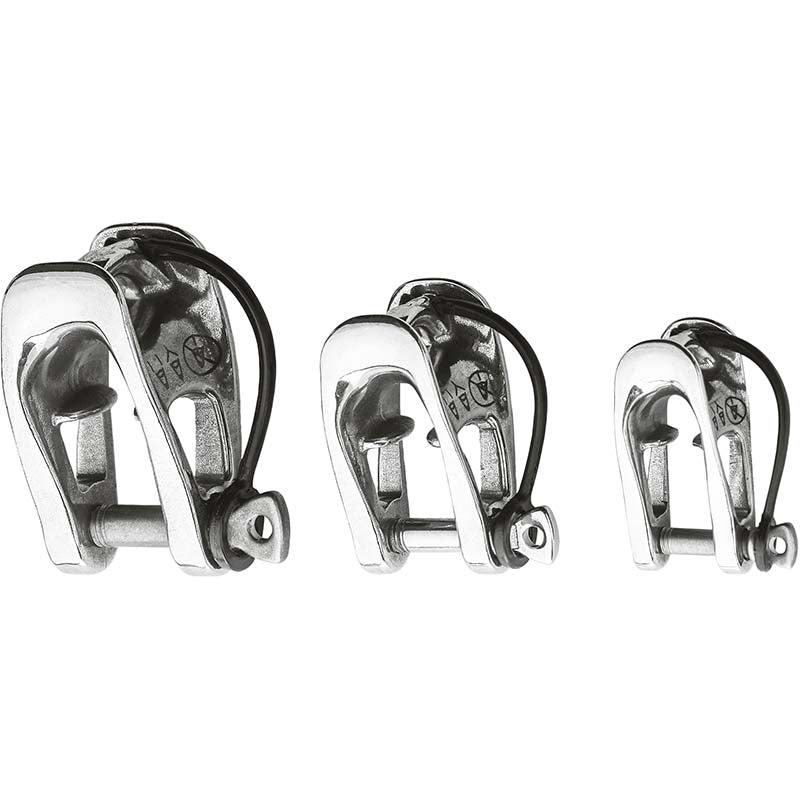

- Available in three sizes,
- Limited rope wear thanks to the track conception,
- For ropes from 8 to 14mm.
| Part | Description | Length mm |
Width mm |
Ø mm |
A mm |
B mm |
ØC mm |
Work Load kg. |
Break Load Kg. |
Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|
| WB-11603 | Captive Pin - for max rope size 8 mm | 53 | 26 | 6 | 18 | 13 | 7 | 1040 | 2300 | 0.053 |
| WB-11604 | Captive Pin - for max rope size 10 mm | 62 | 36 | 8 | 18 | 18 | 9 | 1760 | 4100 | 0.109 |
| WB-11605 | Captive Pin - for max rope size 14 mm | 77 | 44 | 10 | 22 | 22 | 11 | 2640 | 6000 | 0.222 |

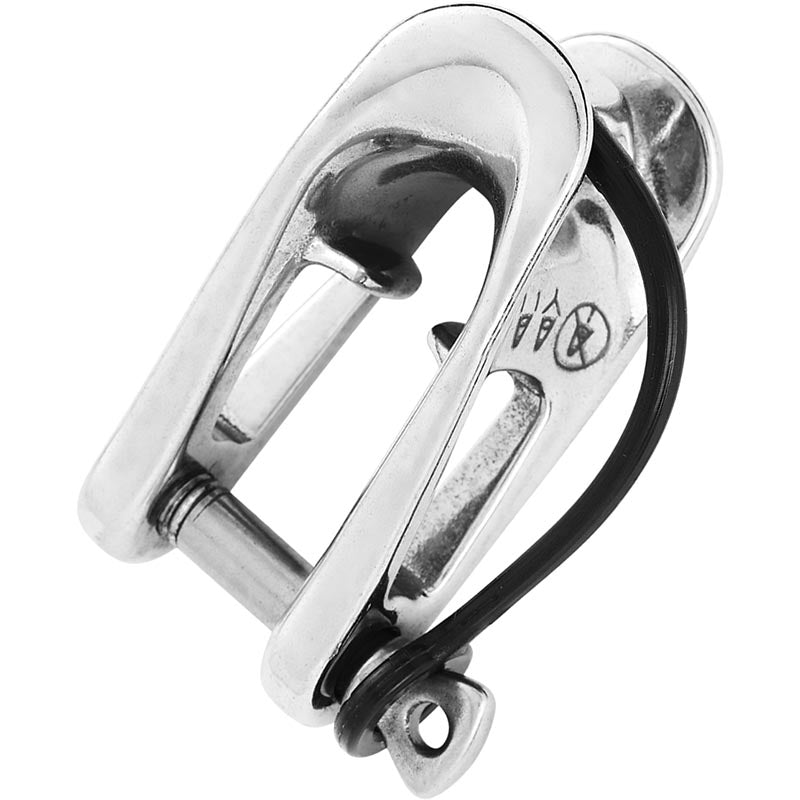

MXEvo with standard captive pin
Thanks to the leash, this MXEvo version can't loose its pin while opening, manipulating and closing the block.
The pin is forged in high-resistant 17.4PH stainless steel.
Applications
- 2:1 halyard purchase: mainsail, spinnaker, gennaker

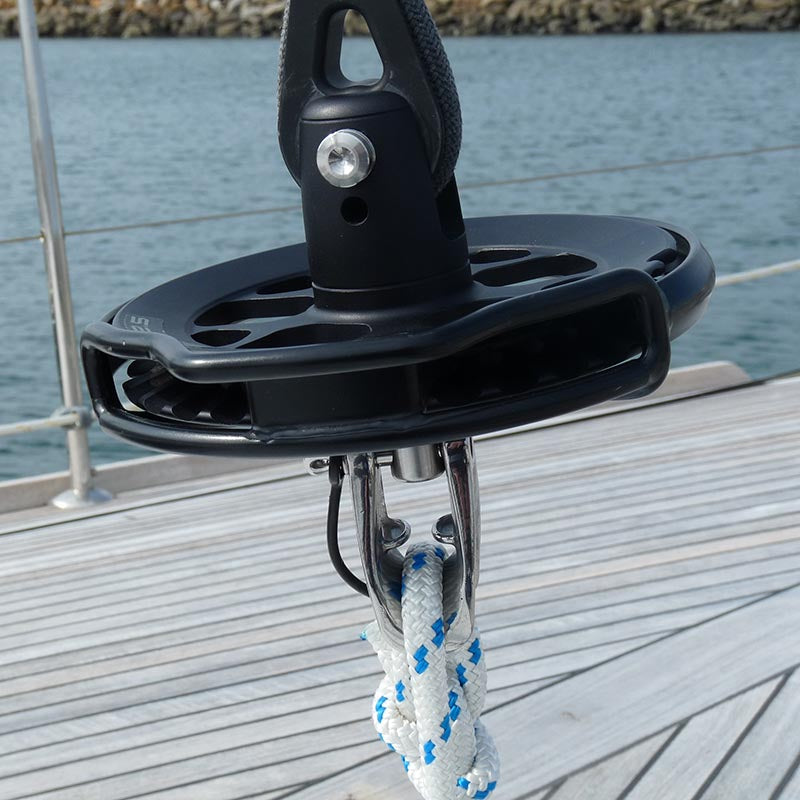

- Flying sail furler terminals: tensioning at the top or from the bottom
